Toray Fuel Cell Hydrophilic Conductive Carbon Paper TGP-H-060/H-030

Toray Fuel Cell Hydrophilic Conductive Carbon Paper TGP-H-060/H-030

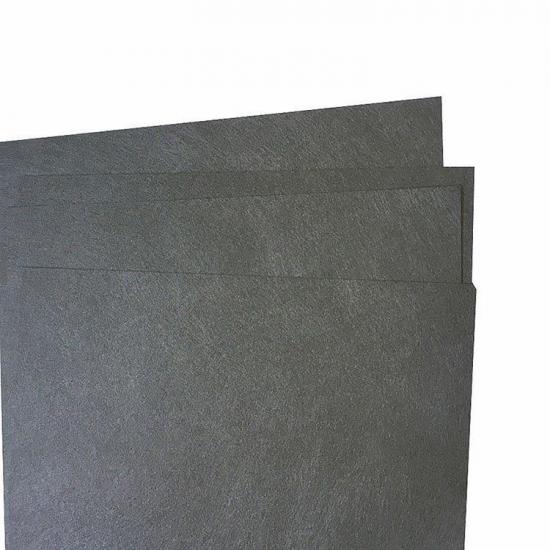

TorayTGP-H-060 raw carbon paper is a type of raw carbon paper that has not been treated with PTFE. Its thickness is 190 microns and it exhibits inherent water resistance. Generally, the "hydrophilic carbon paper" sold by Taobao is actually raw carbon paper, and hydrophilic carbon paper requires acidification, oxidation, or other functional group treatment to make its surface carry hydrophilic groups. TGP-H-060 carbon paper is suitable as a catalyst backing layer and an economical alternative to gas diffusion layer (GDL) materials. The surface of TGP-H-060 carbon paper is smooth and suitable for material synthesis on its surface, such as growing metal particles, metal oxides, etc.

TORAY carbon paper substrate is a composite material made of porous carbon fibers and carbon through high-temperature heat treatment, widely used as electrode substrate for fuel cells and other electrodes, with the following characteristics:

1. High conductivity carbon fibers combine more firmly with carbon to produce better conductivity.

2. High strength carbon paper is very thin, sturdy, and has excellent compression properties.

3. High gas permeability and high porosity (about 78%) allow gas to flow smoothly through carbon paper.

4. Corrosion resistant carbon paper is only composed of carbon that has undergone high-temperature heat treatment, contains very little impurities, and has excellent corrosion resistance. Due to the fact that carbon fibers face the surface, this material has a very smooth surface and is not as uneven as textiles.
