item no.:
TJ-CP120order(moq):
1Payment:
Credit Card, Paypal, T/T , Western Unionproduct origin:
Chinashipping port:
XiamenLead Time:

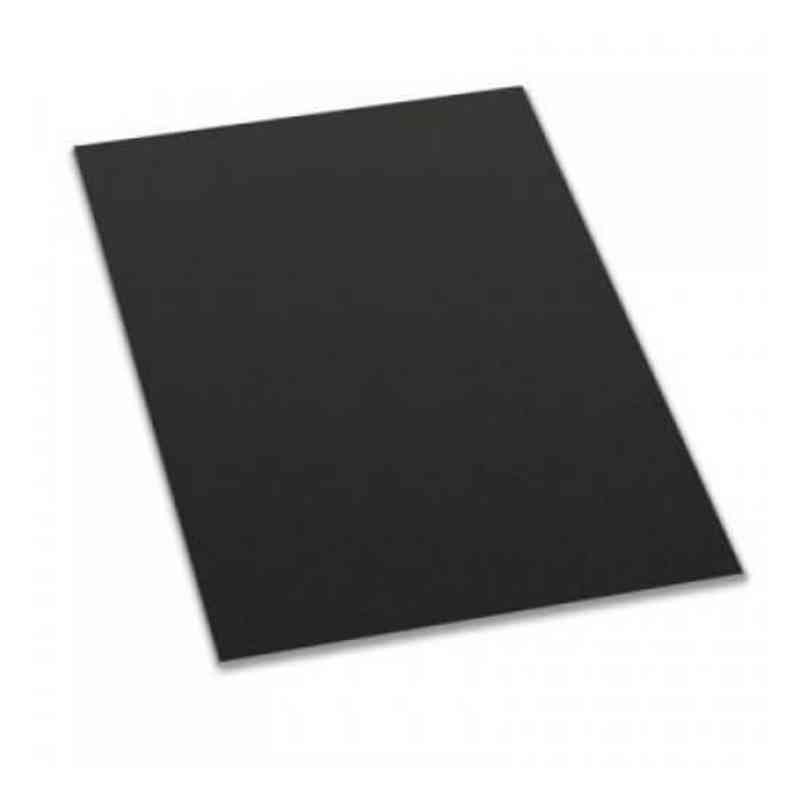

In StockHydrophobic Carbon Paper 120 With Microporous Layer For Fuel Cell
Toray Paper TJ-CP120 - is a carbon fiber composite paper suitable for use as a catalyst backing layer for fuel cells, electrolyzers, batteries, and various other electrochemical device applications after applying a microporous layer (MPL) onto it. The carbon paper substrate has a thickness of 370 microns and the MPL section has a thickness of 60 microns. This product has a total thickness of approximately 430 microns. Toray Paper 120 has a PTFE treatment of approx. 8-9% and the MPL has a PTFE content of approx. 33-35%. Toray Carbon Paper 120 with MPL is a great low-cost alternative to conventional woven carbon cloth Gas Diffusion Layer (GDL) materials.
|
Gas Diffusion Layer Properties |
|
|
Material Type |
Carbon Fiber Paper |
|
Carbon Loading |
1 mg/cm² |
|
Thickness |
0.25 mm (250 microns) |
|
PTFE Treatment |
8-9% for the carbon paper substrate, 33-35% for the MPL |
|
Microporous Layer |
Yes |
|
Dimensions |
9.5 x 9.5 cm, 20 x 20 cm |
