item no.:
TJ-TRPM060order(moq):
1Payment:
Credit Card, Paypal, T/T , Western Unionproduct origin:
Chinashipping port:
XiamenLead Time:

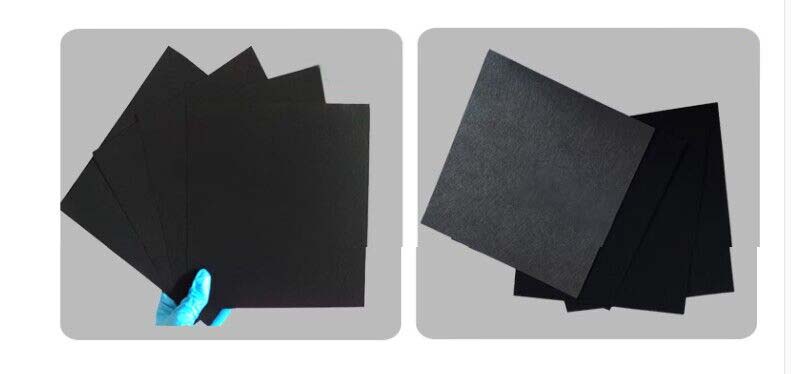

In StockToray Carbon Paper 060 With Gas Diffusion LayerHydrophobic Carbon Paper TGP-H-060 With MPL

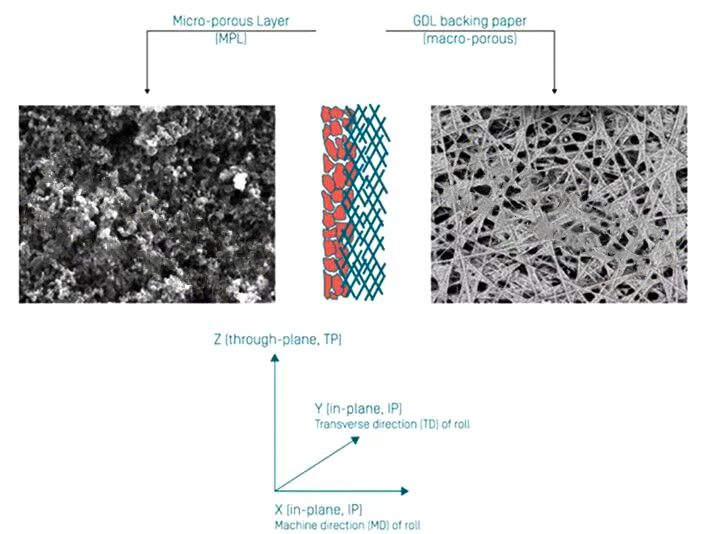

Toray Paper - TGP-T-060 - is a carbon fiber composite paper suitable for use as a catalyst backing layer for fuel cells, electrolytic cells, batteries, and various other electrochemical devices after the application of a microporous layer (MPL). The thickness of the carbon paper is 190 microns, and the thickness of the MPL is 40 microns. The total thickness of this product is approximately 230 microns. Dongli Paper 060 with MPL is a low-cost alternative to traditional woven carbon cloth gas diffusion layer (GDL) materials.
Note: We do not inform you of the PTFE content on mpl and carbon paper. This is confidential. If you mind, please do not purchase
3. People agree that the non -uniform pore rate brought by this structure (hydrophilicity/hydrophobicity and various pores) is beneficial to the performance of the material.
Name
YLS-30T
Waterproofness
waterproof
Thickness（mm）
0.23
Resistivity
15
Air-resistor
2.5
Bending radius（cm）
10
Standard size
19*34cm
Base weight（g/m2）
50
Vertical resistivity（mΩ.cm）
50
Surface resistance（mΩ.cm）
15
Porosity(%)
65
Tensile strength MD (N/cm)
10
Tensile strength XD (N/cm)
7
