item no.:
TJ-GDS2120order(moq):
1Payment:
Credit Card, Paypal, T/T , Western Unionproduct origin:
Chinashipping port:
XiamenLead Time:

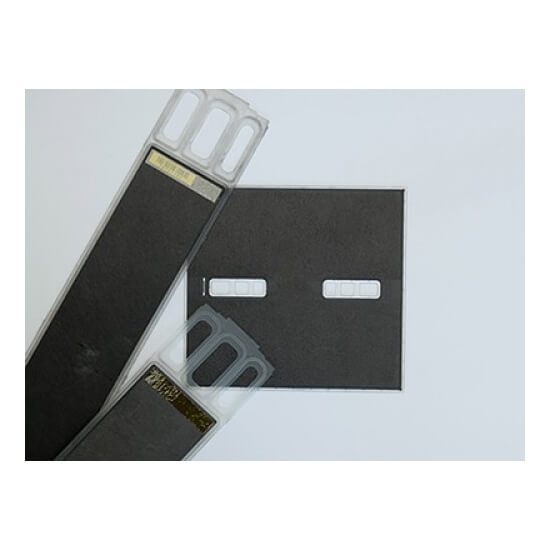

In StockAvCarb Hydrophobic Carbon Paper GDS2120 For Fuel Cell Applications
AvCarb Material Solution’s Gas Diffusion System GDS2120 P75 combines AvCarb's proprietary carbon fiber paper, a PTFE treatment, and micro-porous layer coating, designed for the rigorous demands of specific fuel cell applications such as PEMFC, DMFC, and PAFC.

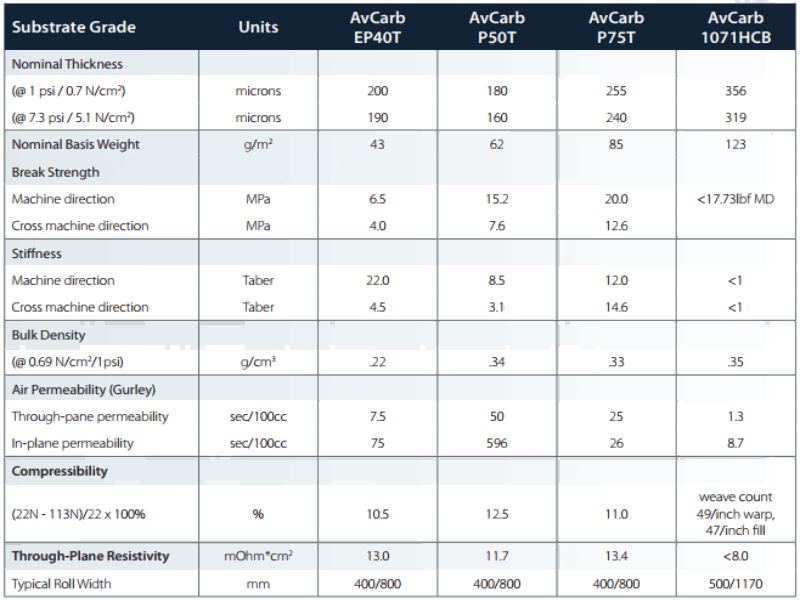

AvCarb P75 is the base substrate used in GDS2120.
|

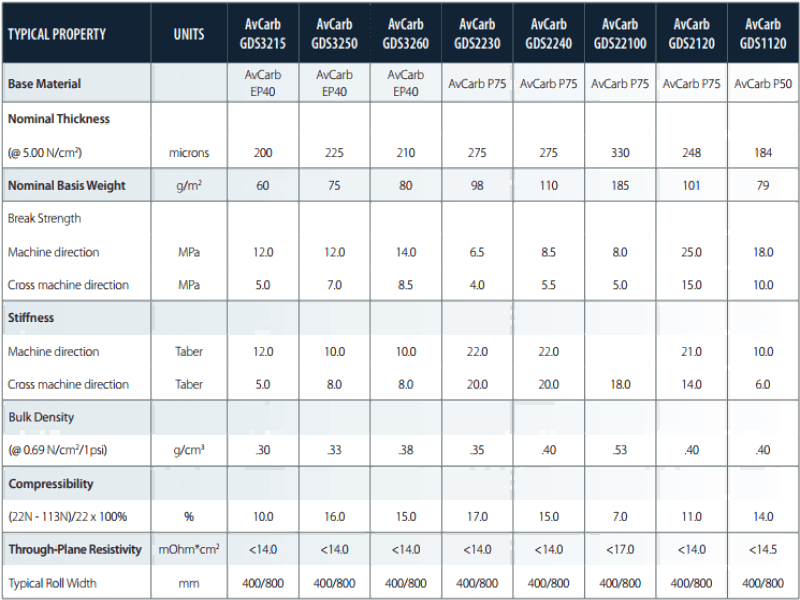

Material Type |
Carbon Fiber Paper |
|
Base Material |
AvCarb P50 |
|
Nominal Thickness (@ 5.00 N/cm²) |
.184 mm (184 microns) |
|
Nominal Base Weight |
79 g/m² |
|
Break Strength machine direction |
18 MPa |
|
Break Strength cross machine direction |
10 MPa |
|
Stiffness machine direction |
10.0 Taber |
|
Stiffness cross machine direction |
6.0 Taber |
|
Bulk Density (@ 0.68 N/cm² / 1psi) |
0.40 g/cm3 |
|
Compressibility ((22N - 113N)/22 x 100%) |
14.0% |
|
Through-Plane Resistivity |
<14.5 mOhm*cm² |
|
PTFE Treatment |
Yes |
|
Microporous Layer (MPL) |
Yes, on one side |
