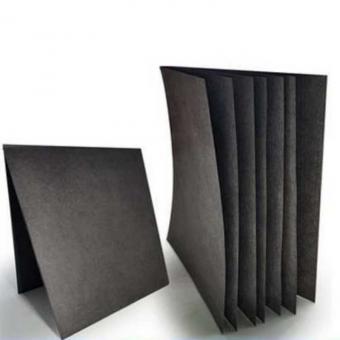

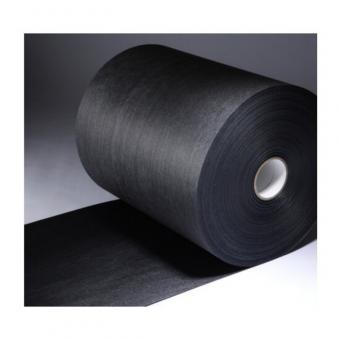

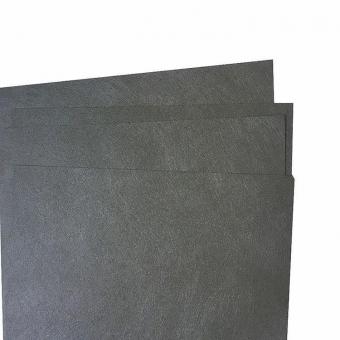

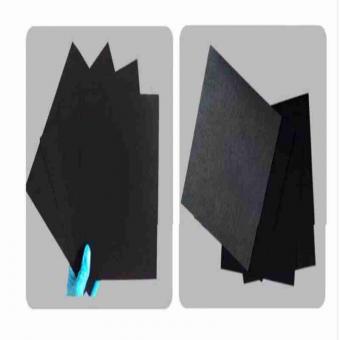

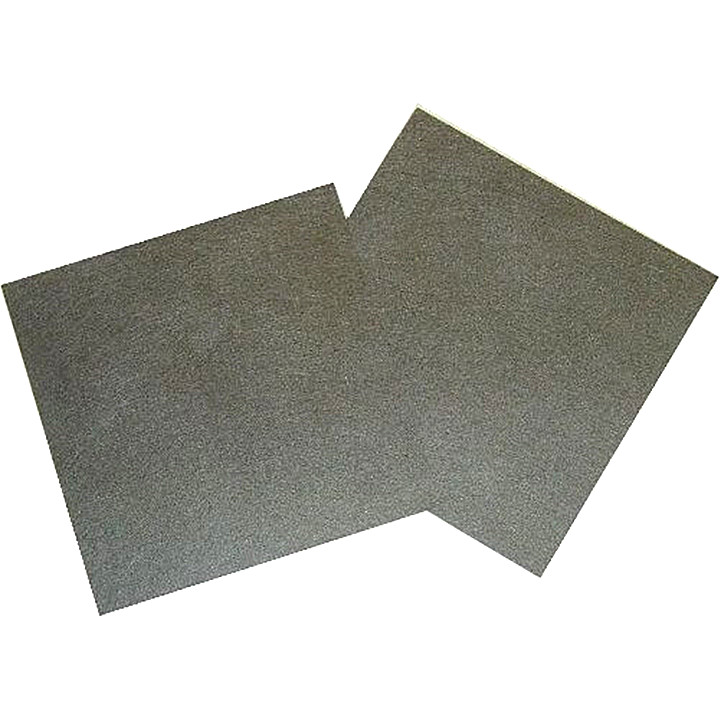

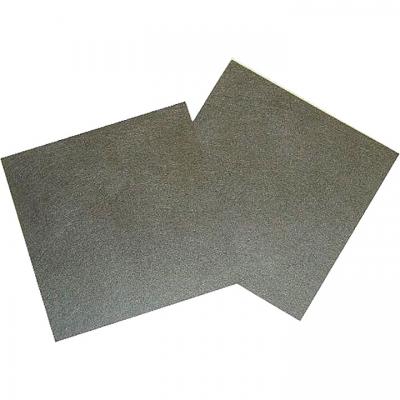

In StockJapanese Brand Toray Carbon Paper TGP-H-030/060/090/120 Hydrophobic Carbon Paper With 5% 10% 20% 30% PTFE
Currently, there are 5%, 10%, 20%, and 30% PTFE loaded hydrophobic carbon paper. The higher the% content, the stronger the hydrophobicity. Please select carbon paper based on your own requirements for hydrophobicity
Toray Paper - TGP-T-060 - is a carbon fiber composite paper that can be used as a catalyst backing layer for fuel cells, electrolytic cells, batteries, and various other electrochemical devices after adding a microporous layer (MPL) to the surface. Our MPL has a thickness of 40 microns. If you need carbon paper with a microporous layer, please click:https://www.laboratory-materials.com/toray-carbon-paper-060-with-gas-diffusion-layer-hydrophobic-carbon-paper-tgp-h-060-with-mpl_p277.html
|
Attribute |
unit |
TGP-H-030 |
TGP-H-060 |
TGP-H-090 |
TGP-H-120 |
|
|
thickness |
mm |
0.11 |
0.19 |
0.28 |
0.37 |
|
|
bulk density |
g/cm3 |
0.40 |
0.44 |
0.44 |
0.45 |
|
|
porosity |
% |
80 |
78 |
78 |
78 |
|
|
Surface roughness |
μm |
8 |
8 |
8 |
8 |
|
|
Air permeability |
ml·mm/(cm2·hr·mmAq) |
2500 |
1900 |
1700 |
1500 |
|
|
Resistivity |
Through face |
mΩcm |
80 |
80 |
80 |
80 |
|
|
In plane |
mΩcm |
- |
5.8 |
5.6 |
4.7 |
|
Thermal conductivity |
Through surface (room temperature) |
W/(m·k) |
- |
1.7 |
1.7 |
1.7 |
|
|
In plane (room temperature) |
W/(m·k) |
- |
21 |
21 |
21 |
|
|
In plane（100℃） |
W/(m·k) |
- |
23 |
23 |
23 |
|
Coefficient of thermal expansion |
In plane（25–100℃） |
×10-6/℃ |
-0.8 |
-0.8 |
-0.8 |
-0.8 |
|
|
Bending resistance |
MPa |
40 |
40 |
40 |
40 |
|
|
Bending modulus |
GPa |
8 |
10 |
10 |
10 |
|
|
tensile strength |
N/cm |
- |
50 |
70 |
90 |
|
Treatment method |
Teflon treatment |
|||||
|
Size |
9cm*10cm/19cm*20cm/38cm*40cm |
|||||
|
PTFE |
5% 10% 20% 30% |
|||||
