item no.:
TJ-IMAorder(moq):
1Payment:
Credit Card, Paypal, T/T , Western Unionproduct origin:
Chinashipping port:
XiamenLead Time:

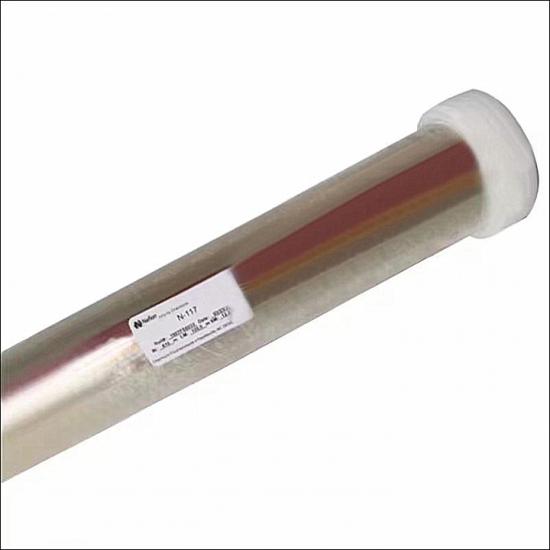

In StockNafion Membrane -N117/115/212/211/NC700 Perfluorinated Sulfonic Acid ion Membran
In the field of proton exchange membranes (PEMs), the most commonly commercialized PEM membrane is Chemours' (formerly DuPont) Nafion membrane. This is a proton conductive polymer membrane, also known as a perfluorosulfonic acid membrane, which allows protons (cations) to pass through, hence it is also known as a cation exchange membrane (CEM).
It is suitable for electrolyte diaphragm in fuel cell, vanadium cell, electrolytic cell, electrodialysis and electrochemical sensor
|
Model |
N117 |
N115 |
N212 |
N211 |
NC700 |
|
Thickness(um) |
183 |
127 |
50.8 |
25.4 |
15 |
|
Density(g/cm2) |
360 |
250 |
100 |
50 |
29.5 |
|
Conductivity(S/cm) |
|
|
0.083 |
|
|
|
Ion exchange capacity (meq/g) |
0.89 |
0.89 |
0.92 |
0.95-1.01 |
0.95 |
|
Breaking Elongation (%)MD |
225 |
225 |
343 |
252 |
105 |
|
Breaking Elongation (%)TD |
310 |
310 |
353 |
311 |
61 |
|
Tensile strength (MPa)MD |
43 |
43 |
32 |
23 |
45 |
|
Tensile strength (MPa)TD |
32 |
32 |
32 |
28 |
45 |
|
water content(%) |
5±3 |
||||
|
Water absorption rate(%) |
38±5 |
38±5 |
50±5 |
||
