DuPont-Proton Exchange Membrane/Ion Membrane-NRE 211 is Used For Fuel Cells

Wechat:linle01-0516

Whatsapp :+86 18859115810

Email: Hailey@laboratory-materials.com

  • item no.:

    TJ-IM211
  • order(moq):

    1
  • Payment:

    Credit Card, Paypal, T/T , Western Union
  • product origin:

    China
  • shipping port:

    Xiamen
  • Lead Time:

    In Stock
Product Detail

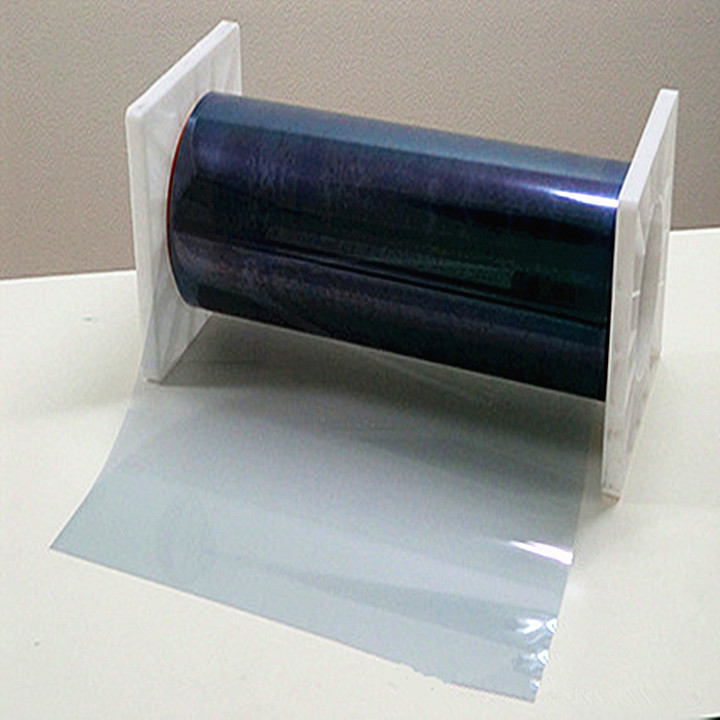

DuPont-Proton Exchange Membrane/Ion Membrane-NRE 211 is Used For Fuel Cells


1. Product Introduction
Perfluorinated ion exchange membranes and proton exchange membranes produced by DuPont in the United States. Proton Exchange Membrane Pretreatment
2. Characteristics
Good thermal stability, able to withstand high temperatures;
Anti electrochemical oxidation, low corrosion, good chemical stability;
Good mechanical performance and long service life;
High conductivity and high output power.




It is suitable for electrolyte diaphragm in fuel cell, vanadium cell, electrolytic cell, electrodialysis and electrochemical sensor



Model

N212

N211

NC700

Thickness(um)

50.8

25.4

15

Density(g/cm2)

100

50

29.5

Conductivity(S/cm)



0.083



Ion exchange capacity

(meq/g)

0.92

0.95-1.01

0.95

Breaking Elongation

(%)MD

343

252

105

Breaking Elongation

(%)TD

353

311

61

Tensile strength

(MPa)MD

32

23

45

Tensile strength

(MPa)TD

32

28

45

water content(%)

5±3

Water absorption rate(%)

50±5
