Battery Electrodes Aluminum Al Metal Foil

Wechat:+86 18859115810

Whatsapp :+86 18859115810

Email: Hailey@laboratory-materials.com

  • item no.:

    TJ-Alfoil
  • order(moq):

    1
  • Payment:

    Credit Card, Paypal, T/T , Western Union
  • product origin:

    China
  • shipping port:

    Xiamen
  • Lead Time:

    In Stock
Product Detail

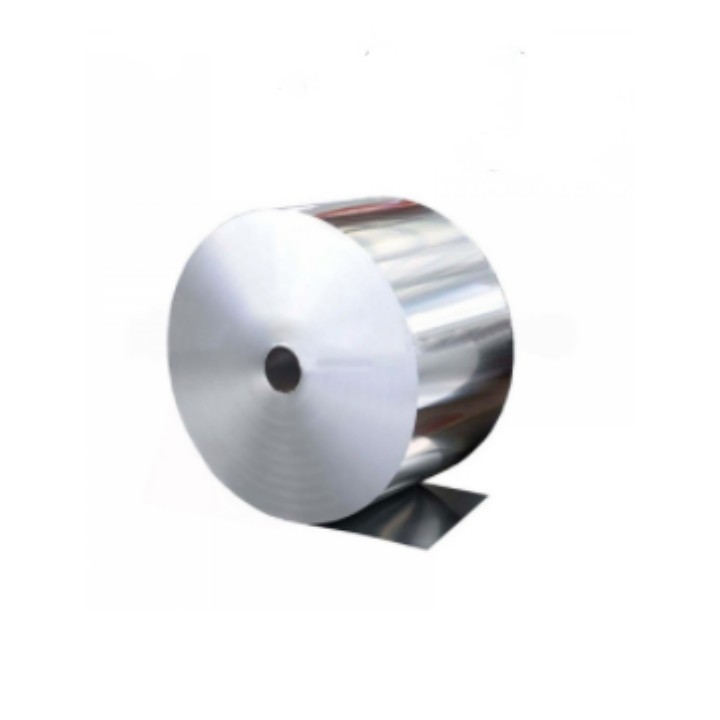

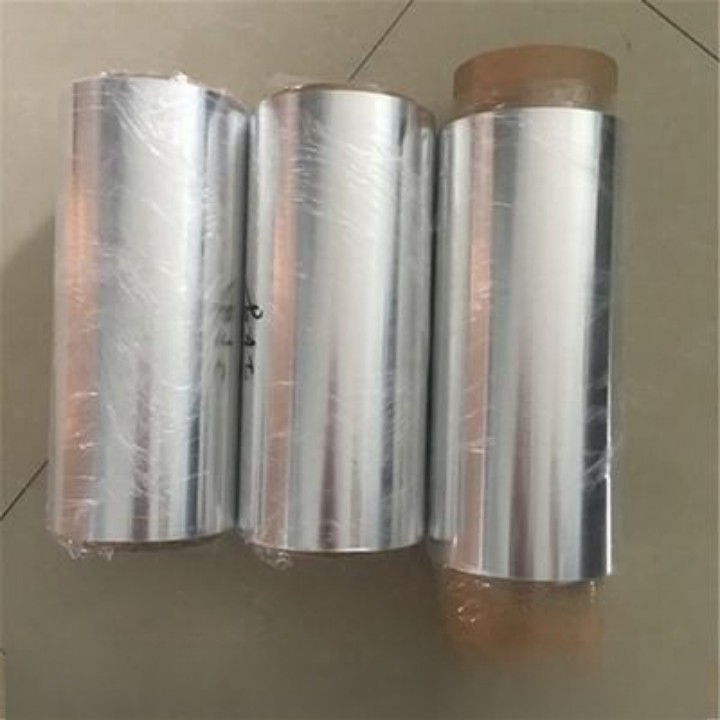

Battery Electrodes Aluminum Al Metal Foil


1.Improve the consistency of battery usage group and reduce battery cost significantly.

Improve the adhesion of active material and the collector, and reduce the electrode manufacturing cost.

2.Reduce the polarization, increase the rate and capacity, improve the battery performance.

Protection of fluid collection, extend battery life.

3.Possess Japan Fuji coating machine, slitting machine and automatic computer inspection rewinder machine.

Average coating speed reach 90-120m/min.

4.Product 21600m conductive coating aluminum foil every 8 hours,can be used for 200Kpcs 18650 core.

5.Roller coating width up to 1 meters.

6.Can adopt continuous or intermittent coating mode.

Specifications

Inspection item

Parameters

Unit

Original thickness (Al foil)

15

um

Double side coating thickness

3

um

Aluminum foil width

309.6

mm

Coating width

280

mm

Single side Average surface density

0.42

g/m2

Tensile strength

214.3

Mpa

Extensibility

1.583



Remarks

If there are special requirements, can be customized
















related products

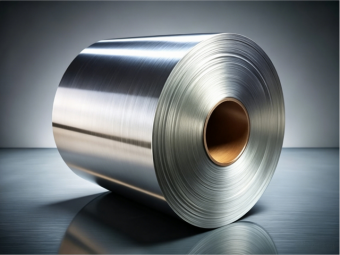

Aluminum Foil of Battery Material
