In StockNickel Foam-Ni Foam Nickel Metal Foam Electrode Materials are Ideal Materials for Lithium Batteries

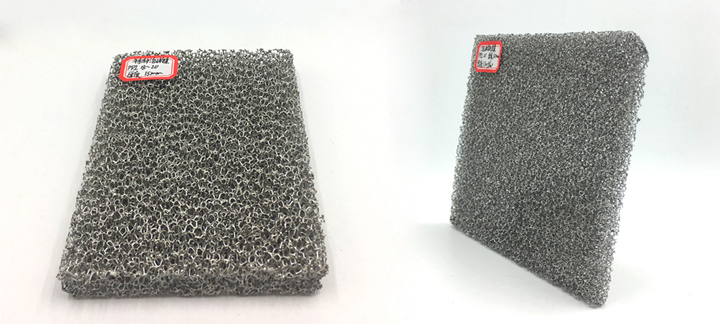

Nickel Foam Sheet is composed by pure Nickel.
Product shows excellent properties of corrosion resistance and hardness.
1. Super light weight, with the largest specific surface area, the specific gravity is 0.2-0.3, which is one quarter of water, one third of wood, one tenth of aluminum metal and one thirtieth of iron.
|
Type |
Open cell |
|
Purity |
> 99% |
|
Form |
Sheet or Roll, depending on size & thickness |
|
Cell Size (PPI) |
10-150PPI, as per request |
|
Thickness |
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request |
|
Size & Shape |
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request |
|
Porosity |
95%-98% |
|
Open Cell Rate |
≥98 % |
|
Volume Density |
>0.1g/cm3, as per request |
|
Surface Density |
200-2500 g/m ^2, as per request |
|
Thermal Conductivity (Theoretical) |
>3W/M.K |
|
Mechanical Strength (Theoretical) |
≥2~7MPa |
|
Tensile Strength (Theoretical) |
8~50MPa |
|
Temperature Resistance (Theoretical) |
≥500℃ |
