item no.:
TJ-CellularNorder(moq):
1Payment:
Credit Card, Paypal, T/T , Western Unionproduct origin:
Chinashipping port:
XiamenLead Time:

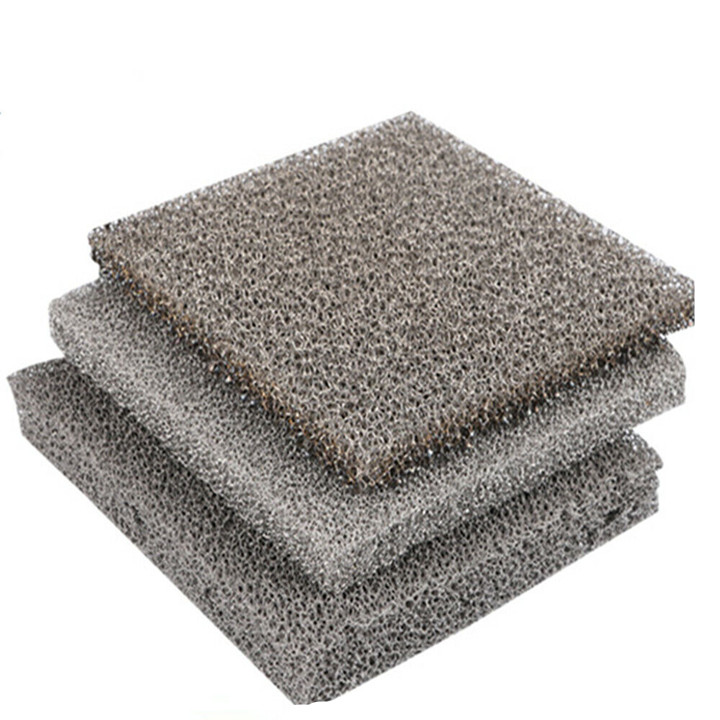

In StockCellular Material Nickel Foam Ni Metal Foam Ni foam Pore Size Can be Customize

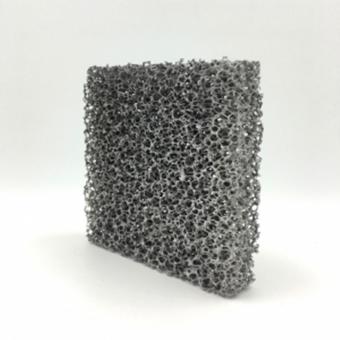

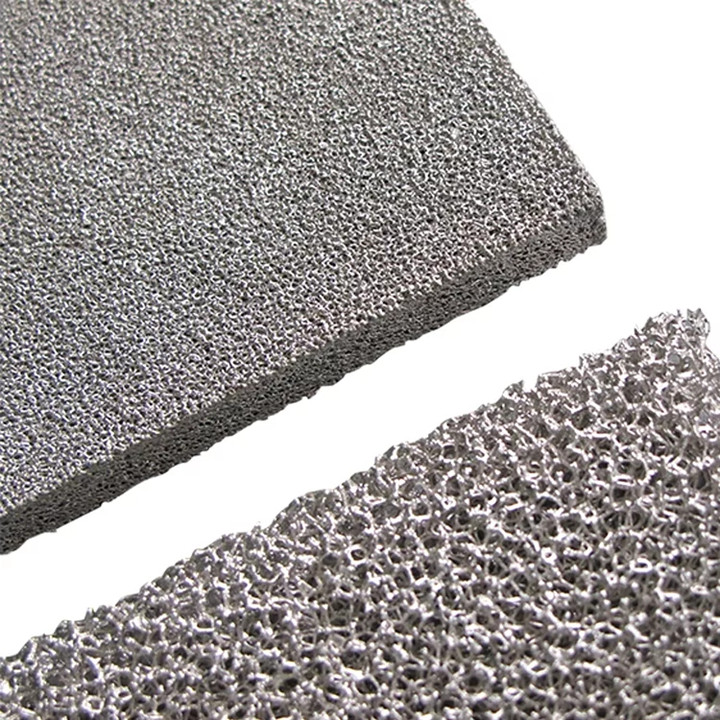

Nickel Foam Sheet is composed by pure Nickel.
Product shows excellent properties of corrosion resistance and hardness.
1. Super light weight, with the largest specific surface area, the specific gravity is 0.2-0.3, which is one quarter of water, one third of wood, one tenth of aluminum metal and one thirtieth of iron.
|
Type |
Open cell |
|
Purity |
> 99.95% |
|
Form |

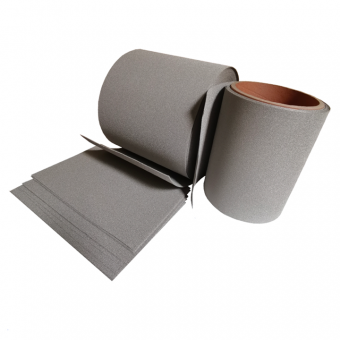

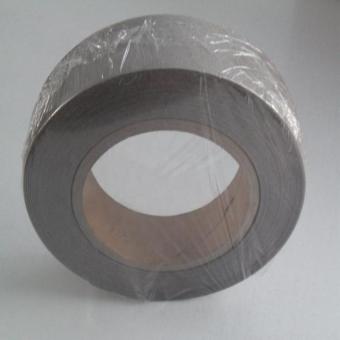

Sheet or Roll, depending on size & thickness |
|

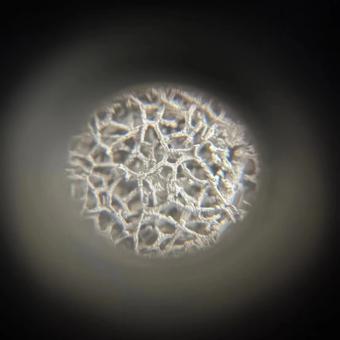

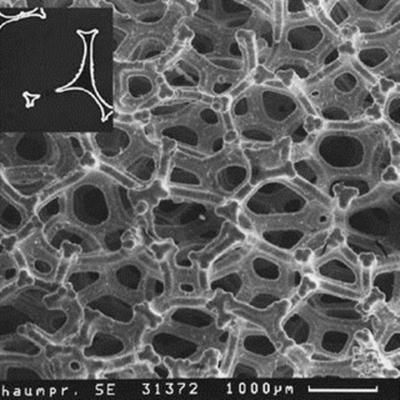

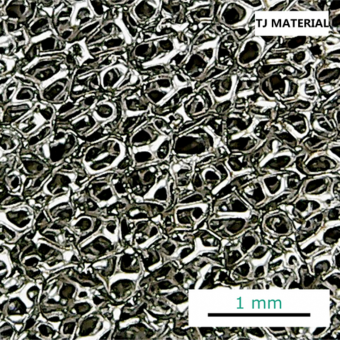

Cell Size (PPI) |
5-300PPI, as per request |
|
Thickness |
Standard: 1-40mm Extra thin (<1mm) / Extra thick (>40mm) can be customized as request |
|
Size & Shape |
Standard: 500*500mm/ 200*300mm/960*1000mm can be made in different shape as per request |
|
Porosity |
95%-98% |
|
Open Cell Rate |
≥98 % |
|
Volume Density |
>0.1g/cm3, as per request |
|
Surface Density |
200-3500 g/m ^2, as per request |
|
Thermal Conductivity (Theoretical) |
>3W/M.K |
|
Mechanical Strength (Theoretical) |
≥2~7MPa |
|
Tensile Strength (Theoretical) |
8~50MPa |
|
Temperature Resistance (Theoretical) |
≥500℃ |
Previous:
80um to 20mm Thickness Nickel Foam Ni Metal Foam Ni foam Can be CustomizeNext:

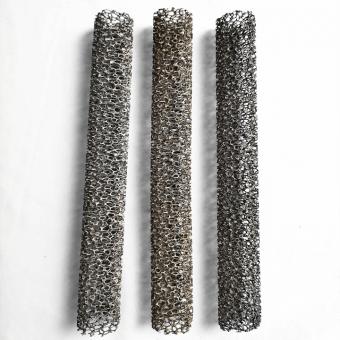

Cylindrical Nickel Foam Ni Foam Can Customizable Shape/PPI/Pore Size/Thickness
