Reticulated Vitreous Carbon (RVC) Open Cell Carbon Foam/RVC Carbon Metal Foam C Foam

Reticulated Vitreous Carbon (RVC) Open Cell Carbon Foam/RVC Carbon Metal Foam C Foam

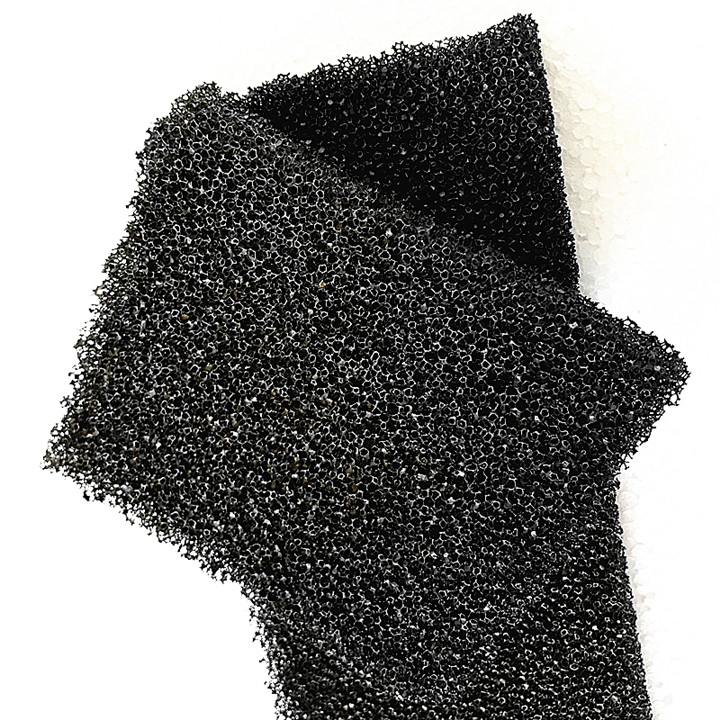

Reticulated vitreous carbon (RVC) is a three-dimensional reticulated (honeycomb) microporous material composed of glassy carbon foam. See Figure I ["for its shape. The porosity can reach 909%~- 97%, the density is small (0.03gcm.), and it has high chemical stability, specific surface area and conductivity, low thermal conductivity and thermal expansion coefficient, and high structural strength

Density: 0.2 ~ 1.0g/cm3

porosity: 30 ~ 80%

Aperture: 0.01-6mm

Compressive strength: 8-12mpa

Compression modulus: 300-620mpa

Tensile strength: 2-5mpa

Tensile modulus: 300 ~ 500MPa

thermal expansion coefficient: 5.0ppm / ℃

Thermal conductivity: 25 ~ 80W / m.k

Resistivity: 1.0 × 10-2 ~ 10-5 Ω· M

Maximum operating temperature: 600 ℃ (in air), 3000 ℃ (in inert gas)

0.5mm*200mm*300mm	1mm*200mm*300mm	1.5mm*200mm*300mm
2mm*200mm*300mm	2.5mm*200mm*300mm	3mm*200mm*300mm
4mm*200mm*300mm	5mm*200mm*300mm	6mm*200mm*300mm
7mm*200mm*300mm	8 to 10mm*20mm*300mm	The size can be customized
