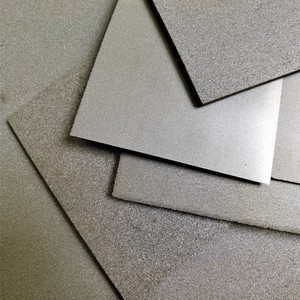

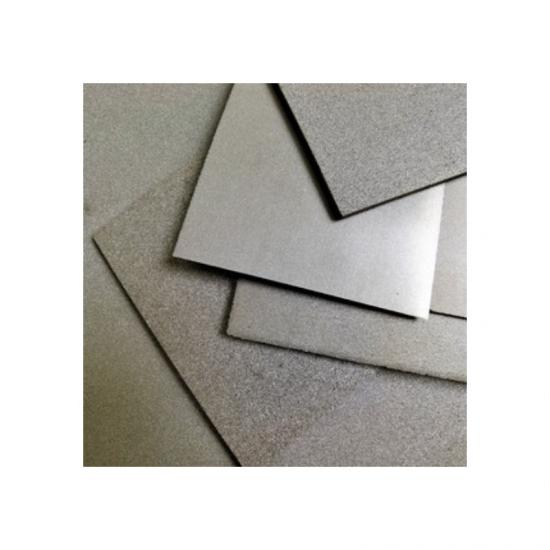

50 Micron Precision Titanium Foam Microporous Ti Plate Foam  Acid And Alkali Resistant

Powder sintered filter materials (including tube and plate types) are microfiltration components made from titanium TA1 and stainless steel 316L powder as raw materials, which are screened, formed, and sintered. High filtration accuracy, good breathability, high mechanical strength, high material utilization rate, suitable
Higher working temperature and heat shock resistance. Widely used in fields such as pneumatic components and chemical engineering. We can produce porous components of various shapes, structures, particle sizes, and porosity according to user requirements. Therefore, powder sintered filter materials are composed of high-tech materials and
The special molding process endows it with unique excellent performance:

1. High temperature resistance, normal use below 500 degrees Celsius.

2. High filtration accuracy, stable pores, effective removal of suspended solids and particles, excellent filtration accuracy, and good purification effect.

3. Good breathability and low pressure loss. High porosity, uniform pore size, low initial resistance, easy backflushing, online regeneration, easy cleaning, strong regeneration ability, and long service life.

4. High mechanical strength, good rigidity, good plasticity, no need for external skeleton support protection, simple installation and use, convenient maintenance, good assembly, and can be welded, bonded, and mechanically processed.

5. Uniform pores, especially suitable for situations with high uniformity requirements such as fluid distribution and homogenization treatment.

6. Filtering accuracy: 1-70 μ M.

7. No particle shedding and no secondary contamination of the original solution.

8. Good mechanical performance, low pressure difference, large flow rate, pressure filtration and suction filtration, simple operation.

9. It has good corrosion resistance and can be stably used in environments such as nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen, liquid nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen gas, carbon dioxide gas, etc.

10. The forming process is good, and the overall length without welding can reach 1200 millimeters.

1. Impurity removal filtration, decarbonization filtration, and fine filtration of materials in the production process of chemical raw materials.

2. Ultrafiltration, RO, EDI system security filtration for water treatment.

3. Clarification and filtration of beverages, fruit juice, Baijiu, beer, vegetable oil, mineral water, soy sauce and vinegar in liquid.

4. Decarbonization filtration and precision filtration of liquid products, liquid raw materials, and intermediates in the chemical industry, filtration and recovery of ultrafine crystals and catalysts, precision filtration after resin adsorption, and impurity removal filtration of system thermal oil and materials, catalytic gas purification, etc.

5. Security filtration for reverse osmosis in fields such as oilfield reinjection water filtration.

6. High temperature decarbonization and bleaching filtration in the dye industry.

7. Gas purification involves steam, compressed air, and catalyst filtration.

8. Pneumatic components, lubricating oil, fuel oil

Diameter: supports customization

Thickness: 0.6mm-3mm

Filtering accuracy: 1um -100um
